Name: YMD608P
SKU: 0

Customization

Get a Quote

Home > Linear Actuators > YMD608P

YMD608P

Feature

Max.load:12000N
Product class lP66
Compact mechanical system
Built-in limit switches
Imported POT/HALL sensors (options)
CE certificated
Widely work in the harsh environment

PDF Download

Basic Spec.

Technical Info

Mounting length

Hall Sensor Signal

POT

Signal Output

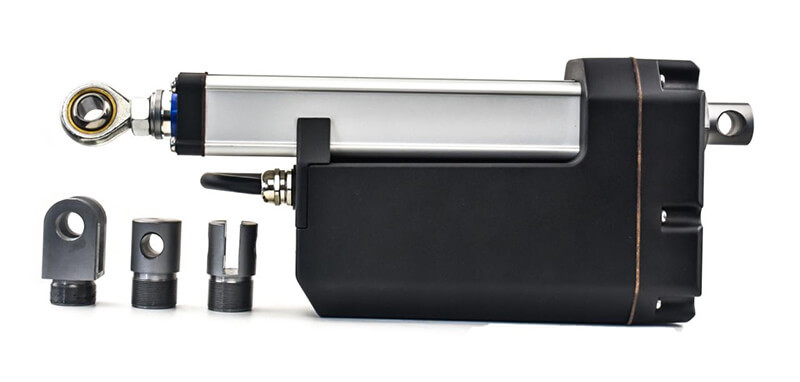

Attachment Options

Video

Housing color	□Black	□Customize colors
Screw type	□T-screw	□Ball screw
Control	Control box	control system+manuel
Appication	□Industrial
Work environment	□0~40℃	□-20~65℃	□-40~65℃
Noise level	□≤75dB
Stroke	□50~600mm	□Customize stroke
Load	□≤1200N	□≤2000N	□≤2500N	□≤8000N	□≤10000N	□≤12000N
Duty cyde	□10%	□20%
Motor type	□Brushed DC motor
Load	□No	□Cautch	Electronic system
IP rating	□IP66
Signal output	□No	□Switch signal	□Hall sensors	□POT	□Magnetic switch
Input voltage	□12V	□24V	□36V	□48V
Cable length	□1m	□2m	□Customize length

Code	Gear ratio	Screw pitch(mm)	No load mm/s ±10%	Full Load mm/s ±10%	Max. Load(N)	Max. Self-locking(N)	No-load current(A)		Full-load current(A)
Code	Gear ratio	Screw pitch(mm)	No load mm/s ±10%	Full Load mm/s ±10%	Max. Load(N)	Max. Self-locking(N)	12V	24V	12V	24V
A	40 :1	4	6.5	4.5	12000	15000	3.5	2	22	12
B	30 :1		8.5	6	11000	12000	3.5	2	22	12
C	20 :1		13	9	7500	9000	3.5	2	22	12
D	40 :1	8	13	7	10000	12000	3.5	2	24	13
E	30 :1		17	9.5	7000	8000	3.5	2	22	12
F	20 :1		25	14	5000	6000	3.5	2	22	12.5
G	40 :1	12	20	11	6500	8000	3.5	2	22	12.5
H	30 :1		25	13	4500	5500	3.5	2	22	12.5
I	20 :1		38	24	3200	4000	3.5	2	22	12.5

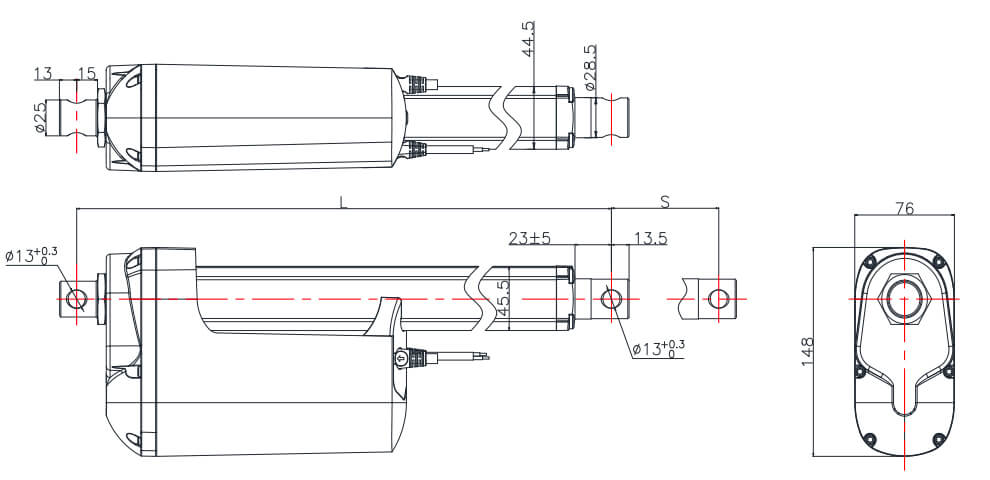

Dimension

S: Stroke, the travel length of actuator

L: Length, the fully retracted length of actuator from front hole centre to rear hole centre

S(mm)	Retracted L (mm)	Extended A(mm)	Simulate
50	290	340	50≤Stroke≤300, L=S+190； A=L+S（A=S*2+190）
100	290	390
150	340	490
200	390	590
250	440	690
300	490	790
350	600	950	300＜Stroke≤600， L=S+250； A=L+S（A=S*2+250）
400	650	1050
450	700	1150
500	750	1250
550	800	1350
600	850	1450
650	950	1600	600＜Stroke≤1000， L=S+300； A=L+S（A=S*2+300）
700	1000	1700
750	1050	1800
800	1100	1900
850	1150	2000
900	1200	2100
950	1250	2200
1000	1300	2300

Hall sensors built-in motor
Code	Signal feedback	Magnetic pole	Resolution (1 pair of pole) Pulse/mn	Resolution (4 pair of pole) Pulse/mn
A	Hall sensors	1 pair of pole or 4 pairs of poles	10.11 pulse/mm	40.4 pulse/mm
B			7.53 pulse/mm	30.11 pulse/mm
C			4.853 pulse/mm	19.41 pulse/mm
D			5.05 pulse/mm	20.21 pulse/mm
E			3.76 pulse/mm	15.05 pulse/mm
F			2.43 pulse/mm	10.07 pulse/mm
G			3.37 pulse/mm	13.47 pulse/mm
H			2.51 pulse/mm	10.03 pulse/mm
I			1.67 pulse/mm	6.47 pulse/mm

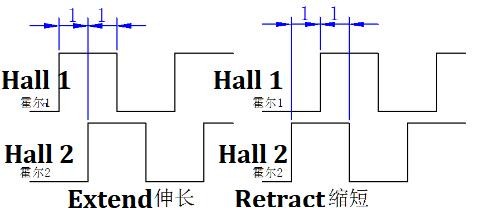

Phase difference
Phase difference 90°

Notice: Hall sensor power supply 3.3V-24V, recommend to use 5V or 12V

POT information
Resistance	Turn(s)	Tolerance	Remark
10K	10	±5%	Actual resistance value may vary within the 0-10KΩ range based on stroke length
POT (10KΩ)
Code	Initial resistance	10KΩ POT Max. stroke	For example
A、 B、 C	0.2-0.4	277	100mm stroke resistance 3.61KΩ
D、 E、 F	0.2-0.4	554	200mm stroke resistance3.61KΩ
G、 H、 I	0.2-0.4	831	500mm stroke resistance 6.17KΩ

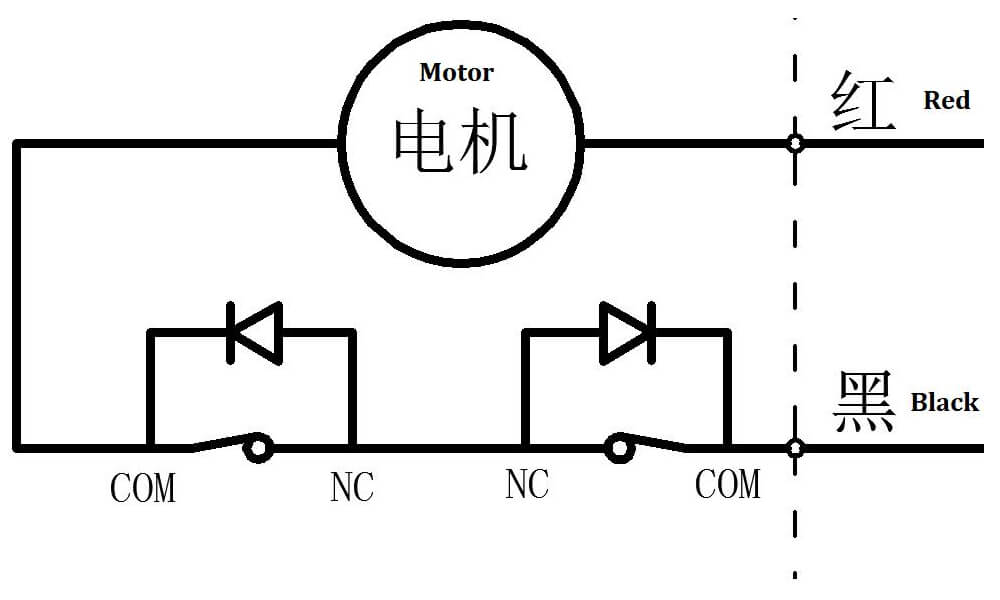

Standard limit switch diagram

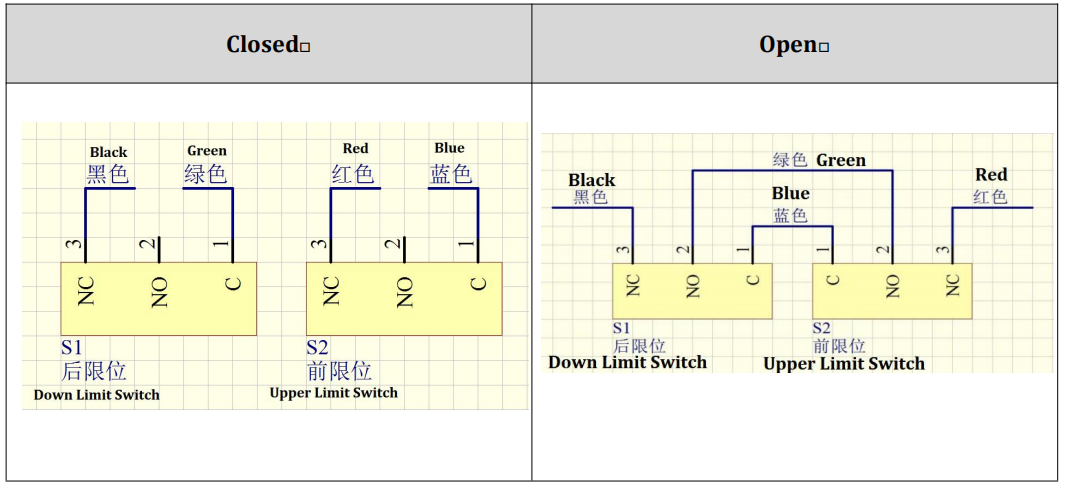

Limit switch signal output

Front

Rear

Dustproof and Waterproof
