YMD601
YMD601

Feature

  •  Aluminum alloy housing

  •  Compact mechanical system

  •  Protect class IP65/IP66

  •  Built-in limit switches

  •  Imported POT/HALL sensors (options)

  •  Anti-corrosion grade C3 (options)

  •  CE certificated

  •  Widely work in the harsh environment

PDF Download
Contact Us Right Now
Basic Spec.
Technical Info
Mounting length
Hall Sensor Signal
POT
Signal Output

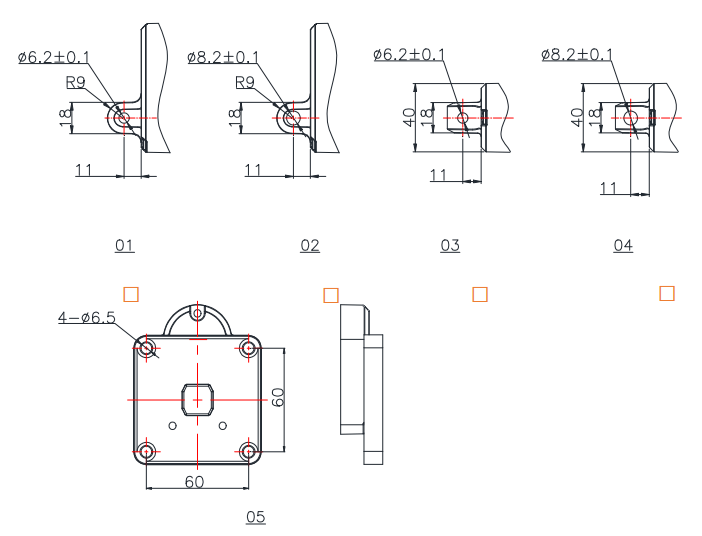

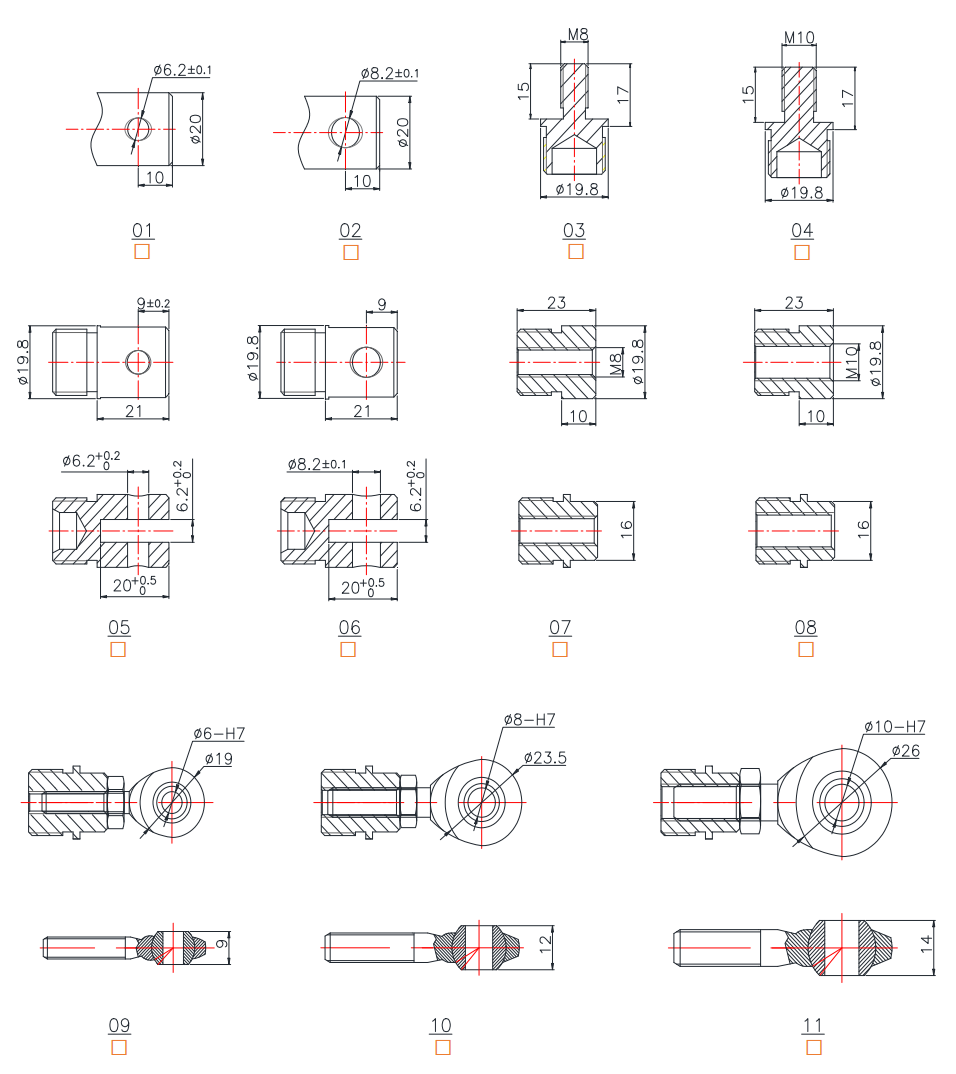

Attachment Options
Video

Housing color

□Silver             □Black                   □Customize colors



Screw type

□T-screw

Control

□control box

Application

□Industrial

Work

environment

□0~40℃       □-20~65℃         □-40~65℃

Noise level

□≤65dB

Stroke

□50-600mm    □Customize stroke

Load

□≤1200N

Duty cycle

□10%            □20%

Motor type

□Brushed DC motor

IP rating

□IP65          □IP66

Signal output

□No               □Switch signal       □Hall sensors        □POT               □Magnetic switch

Input voltage

□12V             □24V               □36V               □48V

Cable length

□1m                 □2m                   □Customize length

Code

Gear ratio

Screw pitch

Max.load

(N)

No-load speed

(mm/s)

Full-load speed

(mm/s)

No-load current (A)

Full-load current (A)

12V

24V

36V

48V

12V

24V

36V

48V

A

40:1

3

1200

5

3.5

1.5

0.6

0.3

0.2

3

1.5

0.8

0.7

B

30:1

3

1000

6.5

5

1.5

0.6

0.3

0.2

3

1.5

0.8

0.7

C

30:1

5

700

11.5

8

1.5

0.6

0.3

0.2

2.5

1.2

0.8

0.6

D

20:1

5

500

16.5

12

1.5

0.6

0.3

0.2

2.5

1.2

0.8

0.6

E

30:1

7.5

400

17

11.5

1.5

0.6

0.3

0.2

2.5

1.2

1

0.6

F

20:1

7.5

250

25

20

1.5

0.6

0.3

0.2

2.5

1.2

1

0.6

G

5:01

3

200

38

22

1.5

0.6

0.3

0.2

3.5

1.5

1.2

0.9

H

5:01

5

100

60

42

1.5

0.6

0.3

0.2

3

1.5

1.2

0.9

I

5:01

7.5

50

80

65

1.5

0.6

0.3

0.2

3

1.5

1.2

1

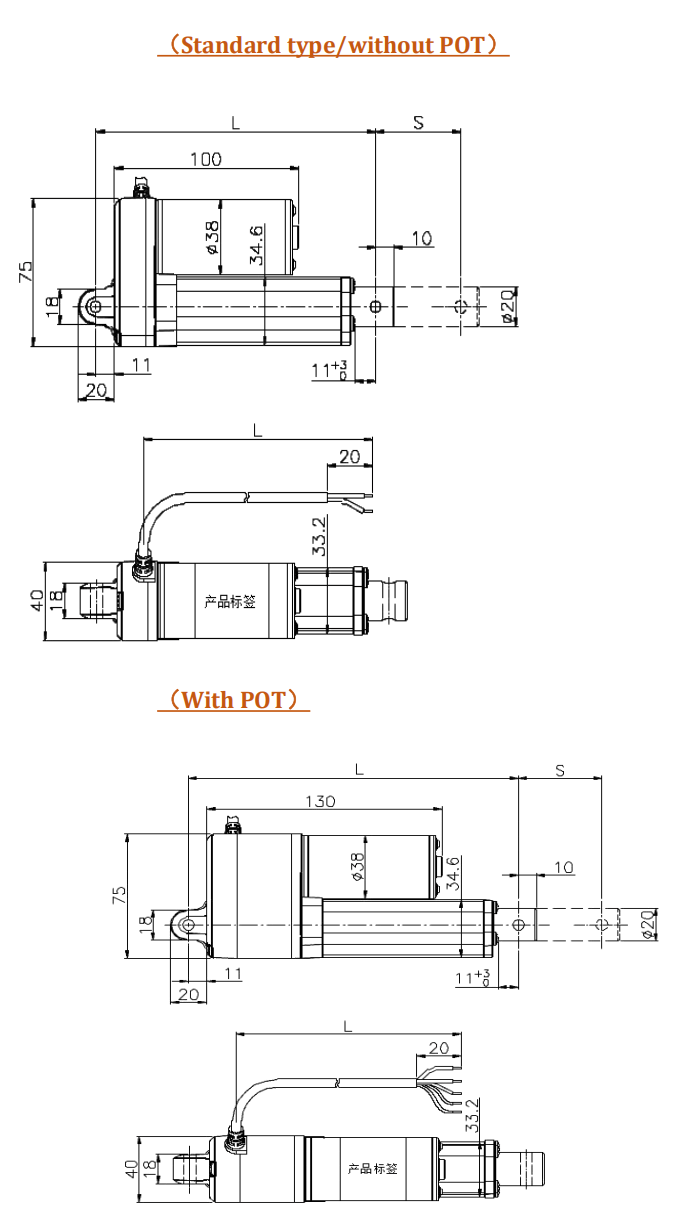

Dimension

S: Stroke, the travel length of actuator

L: Length, the fully retracted length of actuator from front hole centre to rear hole centre

Linear actuator without POT

S
(mm)		Retracted
L
(mm)		Extended
A
(mm)		Simulate
5015520530≤Stroke≤300

L=S+105

A=L+S(A=S*2+105)

100205305
150255405
200305505
250355605
300405705
350470820300<stroke≤500

L=S+120

A=L+S(A=S*2+120)

400520920
4505701020
5006201120
550680
730		1230
1330		500<stroke≤600
L=S+130
A=L+S(A=S*2+130)
6007301330

Linear actuator with POT

S(mm)Retracted L (mm)Extended A (mm)Simulate
50185235

30≤Stroke≤300

L=S+135

A=L+S(A=S*2+135)

100235335
150285435
200335535
250385635
300455755
350505855

300≤Stroke≤450

L=S+155

A=L+S(A=S*2+155)

400555955
4506051055



POT information

Resistance

Turn(s)

Tolerance

Remark

10K

10

±5%

Actual resistance value may vary within the 0-10KΩ range based on stroke length

5K

10

±5%

Actual resistance value may vary within the

0-5KΩ range based on stroke length)

POT (10KΩ)

Code

Initial resistance

10KΩ POT Max. stroke

For example

A、B、G

0.2-0.4KΩ

180mm/540mm

100mm: 5.556KΩ/

100mm: 1.852KΩ

C、D、H

0.2-0.4KΩ

300mm/600mm

100mm: 3.333KΩ/

100mm: 1.667KΩ

E、F、I

0.2-0.4KΩ

540mm/600mm

100mm: 1.852KΩ/

100mm: 1.667KΩ

POT (5KΩ)

Code

Initial resistance

5KΩ POT  Max. stroke

For example

A、B、G

0.1-0.2KΩ

180mm/540mm

100mm: 2.8KΩ/ 100mm:0.926KΩ

C、D、H

0.1-0.2KΩ

300mm/600mm

100mm: 1.667KΩ/

100mm: 0.833KΩ

E、F、I

0.1-0.2KΩ

540mm/600mm

100mm: 0.926KΩ/

100mm: 0.833KΩ

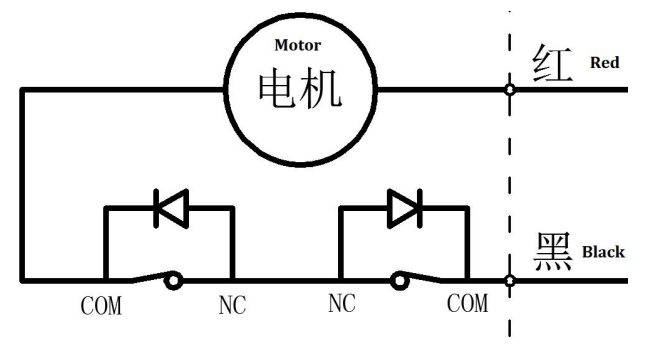

Standard limit switch diagram

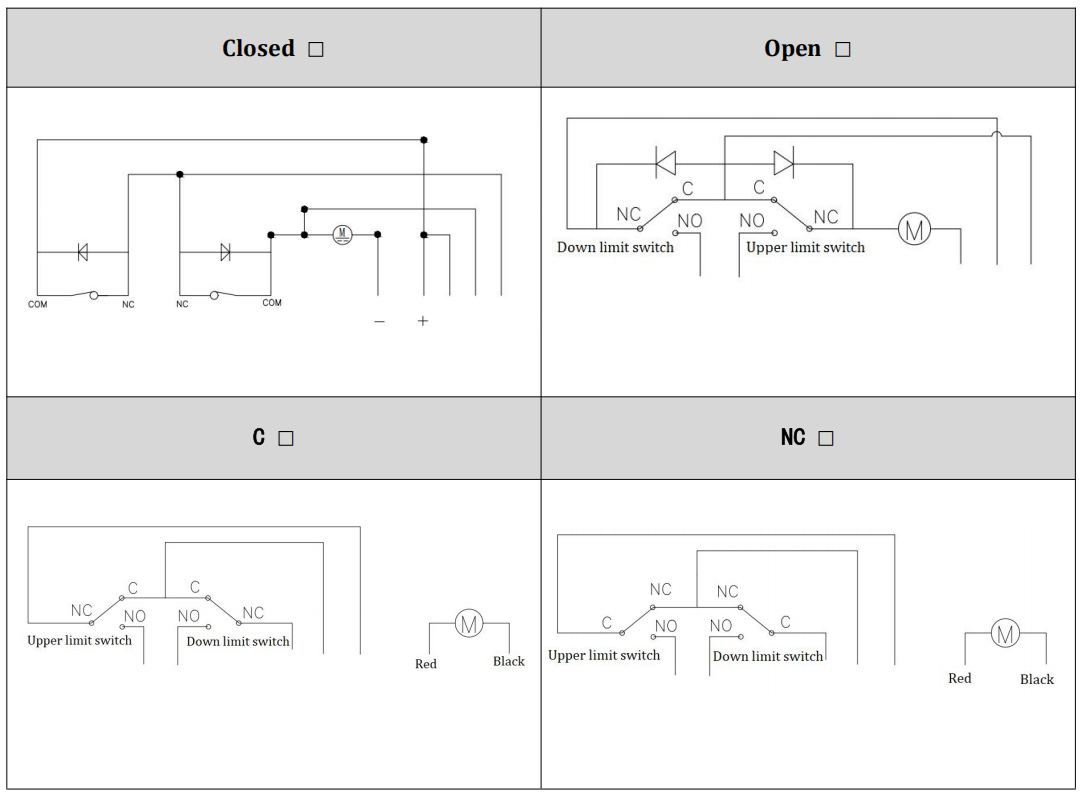

Limit switch signal output

Front

Rear

Dustproof and Waterproof
