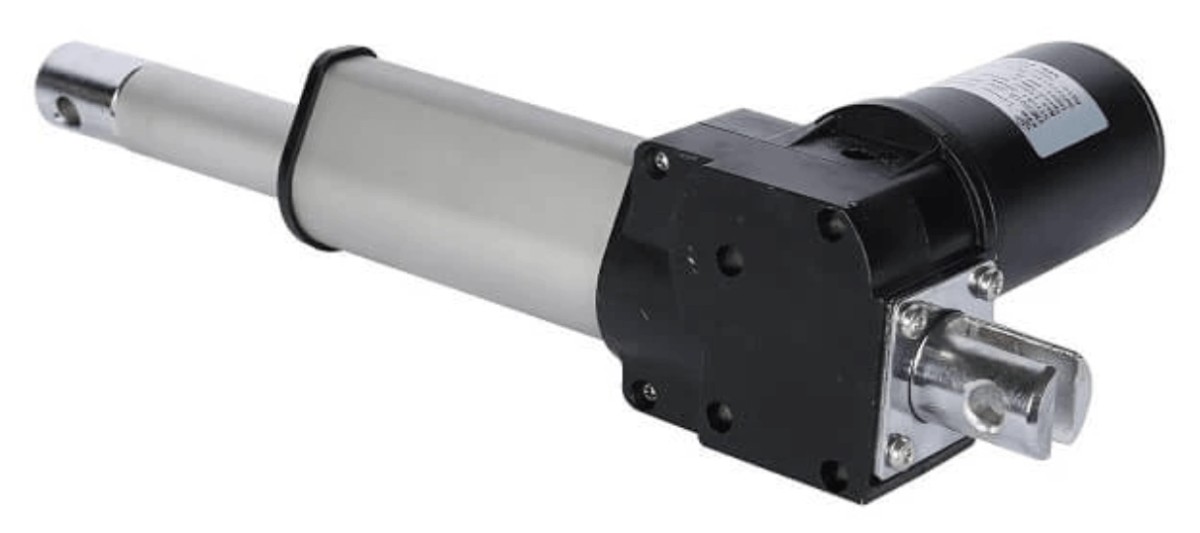

YMD501B
YMD501B

Feature

  • L-type linear actuator

  • Compact mechanical system

  • Protect class IP65

  • Built-in limit switches

  • Imported HALL sensors (options)

  • CE certificated

  • Widely work in the harsh environment

PDF Download
Contact Us Right Now
Basic Spec.
Technical Info
Mounting length
Hall Sensor Signal
POT
Signal Output
Attachment Options
Video

Housing color

□Silver             □Black                   □Customize colors





Screw type

□T-screw

Control

□control box   □control system + manual

Application

□Industrial    □Furniture           □Medical

Work

environment

□0~40℃       □-20~65℃         □-40~65℃

Noise level

□≤50dB

Stroke

□50-600mm    □Customize stroke

Load

□≤1200N        □≤2000N              □≤2500N              □≤8000N

Duty cycle

□10%            □20%

Motor type

□Brushed DC motor

IP rating

□No            □IP65

Signal output

□No               □Switch signal       □Hall sensors        □Magnetic switch

Input voltage

□12V             □24V               □36V               □48V

Cable length

□1m                 □2m                   □Customize length

Code

Screw pitch

No-load speed

（mm/s)

Full-load

(mm/s)

Max.load

(N)

Max. Self-locking

(N)

No-load current (A)

Full-load current (A)

12V

24V

36V

48V

12V

24V

36V

48V

A


4

4.6

2.8

8000

8000

1.5

0.7

0.6

0.4

8

4

3

2

B

9.2

6.5

4000

5000

1.5

0.7

0.6

0.4

8

4

3

2

C


5

6

3.5

5000

6000

1.5

0.7

0.6

0.4

8

4

3

2

D

11

7

2500

3000

1.5

0.7

0.6

0.4

8

4

3

2

E

7.5

17

11.5

1500

1500

1.5

0.8

0.6

0.4

8

4

3

2

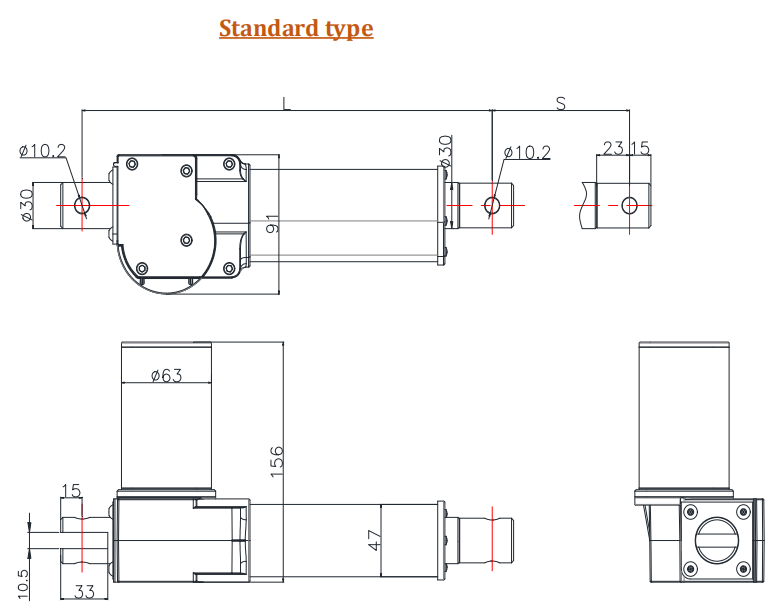

Dimension

S: Stroke, the travel length of actuator

L: Length, the fully retracted length of actuator from front hole centre to rear hole centre

S(mm)Retracted L(mm)Extended A(mm)Simulate
50230280

50≤Stroke≤400

L=S+180

A=L+S(A=S*2+180)

100280380
150330480
200380580
250430680
300480780
350550900

400＜Stroke≤600,

L=S+200

 A=L+S(A=S*2+200)

4006001000
4506801130

400＜Stroke≤600

L=S+230

A=L+S(A=S*2+230)

5007301230
5507801330
6008301430



Hall sensors built-in motor
CodeSignal feedbackMagnetic poleResolution
(1 pair of pole)
Pulse/mm		Resolution
(4 pairs of poles)
Pulse/mm
AHall sensors1 pair of pole or
4 pairs of poles		10 pulse/mm40 pulse/mm
B5 pulse/mm20 pulse/mm
C8 pulse/mm32 pulse/mm
D4 pulse/mm16 pulse/mm
E2.667 pulse/mm10.667 pulse/mm
F1.667 pulse/mm6.667 pulse/mm

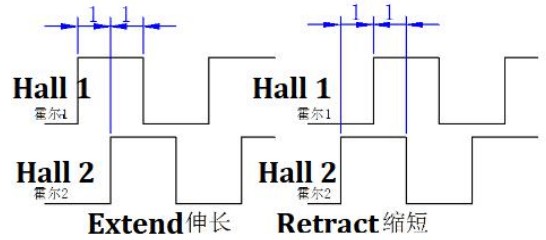

Phase difference
Phase difference 90°

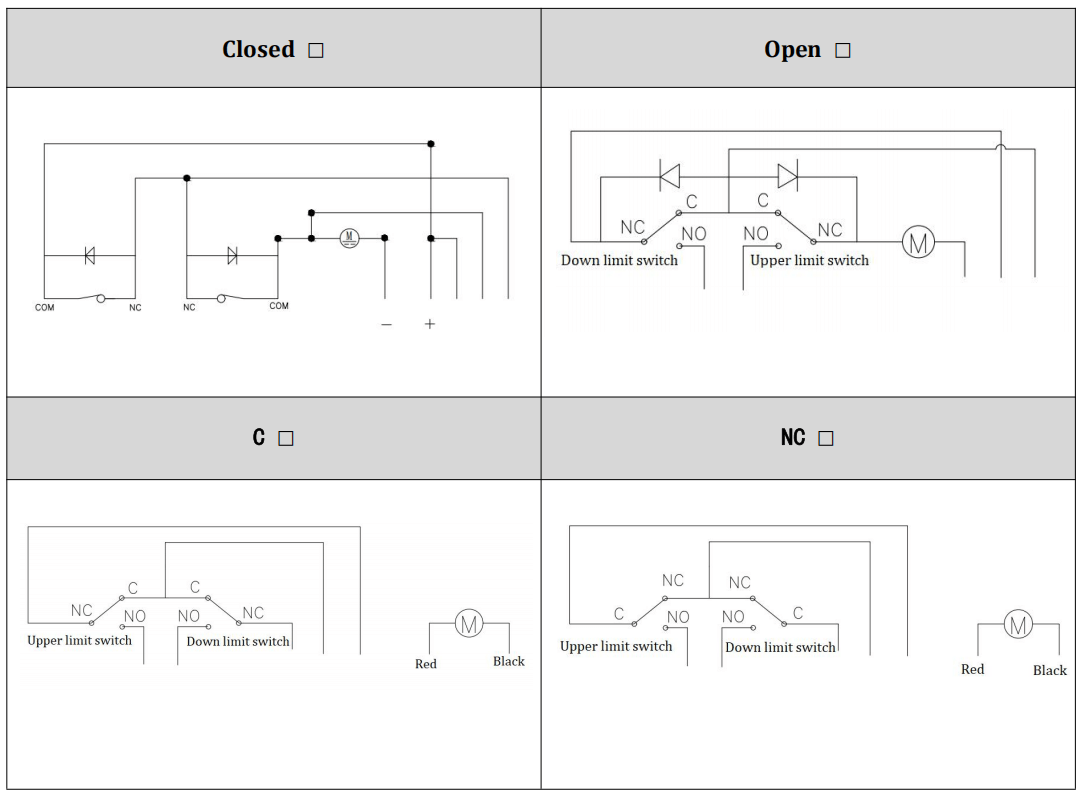

Standard limit switch diagram

Limit switch signal output

Front

Rear

Dustproof and Waterproof


Get in touch

Submit

FAQ

What is the lead time?

Normally takes about 10 days . For bulk or urgent orders, please contact us so we can set a precise lead time.

Can the products be made with our logo or brand?

Yes of course we can make it. We are OEM/ODM suppliers for years and are professional to make. But your written authorization is needed.

Why choose YMD electrical linear actuator?

YMD linear actuator is designed in ripe technology and is manufactured by experienced workers. You will find YMD linear actuators:
* Easy to install, easy to disassemble, easy to transport;
* High quality, high efficiency, high performance;
* Low noise, low cost, low maintenance.

My order quantity is small, can you provide it?

No matter how many products you want, we will serve you with our best products and services.

Do you get the relevant certifications?

Yes, we have got the certifications of CE, ISO9001:2015 so far.

How can I get the quotation?

Contact us on made-in-china.com and tell us details of your desired products: Stroke length, Input voltage, Load capacity,Purchase Quantity, etc.
