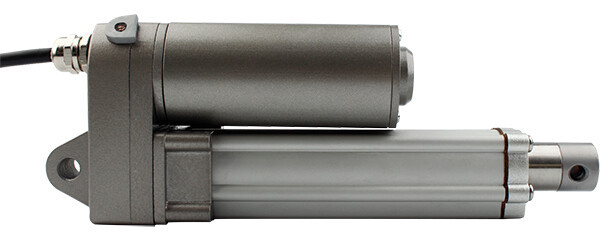

YMD602

Feature

Aluminum alloy housing
SUS304 inner-tube
Compact mechanical system
Protect class IP66
Built-in limit switches
Imported POT/HALL sensors (options)
CE certificated
Widely work in the harsh environment

PDF Download

Basic Spec.

Technical Info

Mounting length

Hall Sensor Signal

POT

Signal Output

Attachment Options

Video

Housing color	□Silver □Black □Customize colors
Screw type	□T-screw
Control	□control box □control system + manual
Application	□Industrial
Work environment	□0~40℃ □-20~65℃ □-40~65℃
Noise level	□≤65dB
Stroke	□50-600mm □Customize stroke
Load	□≤1200N □≤2000N □≤2500N
Duty cycle	□10% □20%
Motor type	□Brushed DC motor
IP rating	□IP65 □IP66
Signal output	□No □Switch signal □Hall sensors □POT □Magnetic switch
Input voltage	□12V □24V □36V □48V
Cable length	□1m □2m □Customize length

Code	Gear ratio	Screw pitch	Max.load	No-load （mm/s）	Full-load （mm/s）	Test environment (standard temperature)
						12V	24V	36V	48V	12V	24V	36V	48V
						No-load current (A)				Full-load current (A)
A	1.667361111	3	2000	5	3.5	1.2	0.6	0.4	0.3	3.5	2	1.5	1
B	1.250694444	3	1600	6.5	5	1.2	0.6	0.4	0.3	3.5	2	1.5	1
C	0.834027778	3	1200	10	7	1.2	0.6	0.4	0.3	3.5	2	1.5	1
D	0.417361111	3	700	18	13	1.2	0.6	0.4	0.3	3.5	2	1.5	1
E	0.834027778	5	600	14	11	1.5	0.8	0.5	0.3	4	2.5	1.5	1
F	0.834027778	7.5	450	24	18	1.5	0.8	0.5	0.3	4	2.5	1.5	1
G	0.209027778	3	300	38	30	1.2	0.7	0.4	0.3	3.5	2	1.5	1
H	0.417361111	7.5	250	45	35	1.5	0.8	0.5	0.3	4	2.5	1.5	1
I	0.209027778	5	200	55	45	1.5	0.8	0.5	0.3	4	2.5	1.5	1
J	0.209027778	7.5	100	80	60	1.5	0.8	0.5	0.3	4	2.5	1.5	1

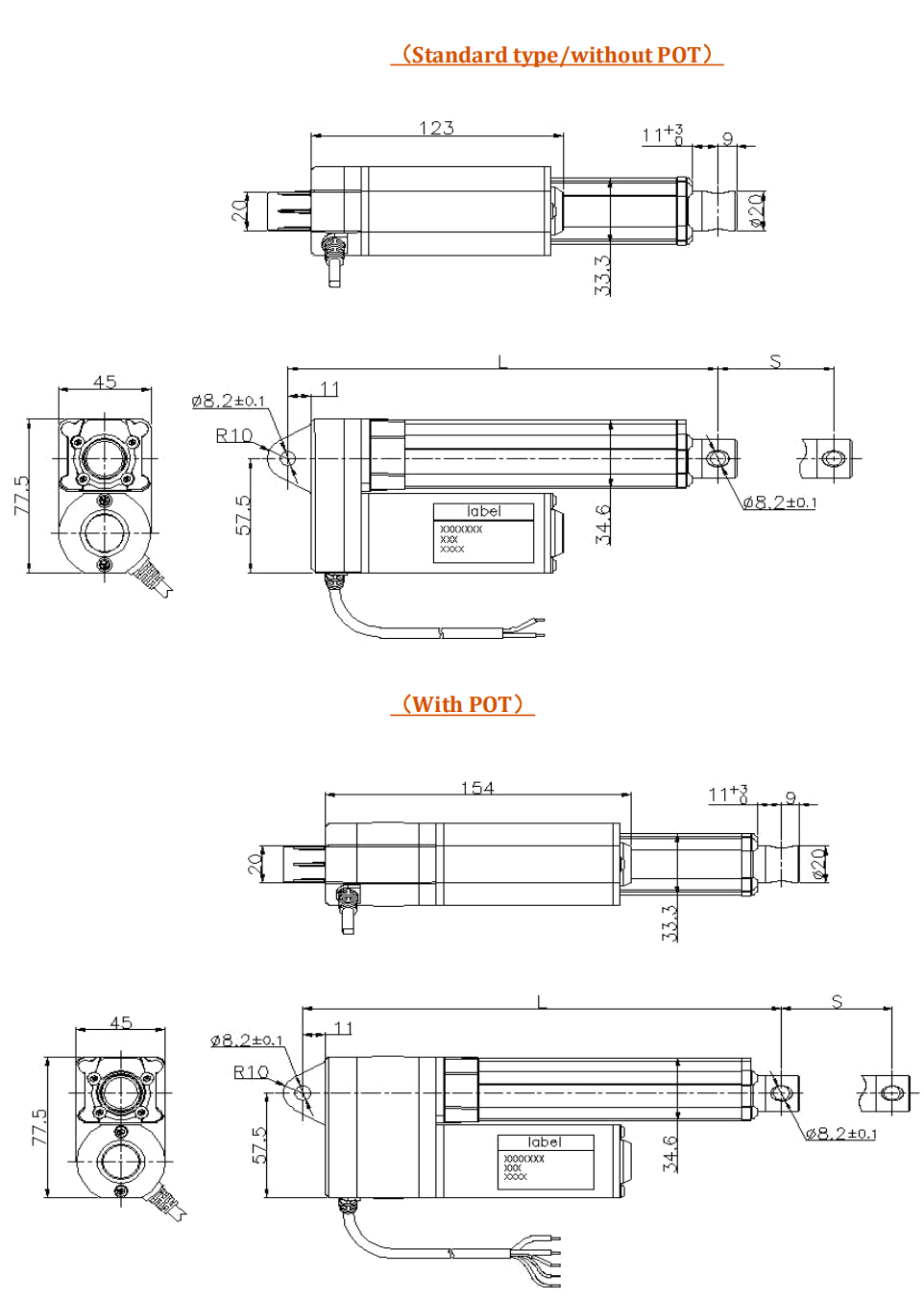

Dimension

S: Stroke, the travel length of actuator

L: Length, the fully retracted length of actuator from front hole centre to rear hole centre

Linear actuator without POT

S(mm)	Retracted L(mm)	Extended A(mm)	Simulate
50	158	208	30≤Stroke≤300,L=S+108，A=L+S(A=S*2+108)
150	258	408
200	308	508
250	358	608
300	408	708
350	500	850	300＜Stroke≤500, L=S+150,A=L+S(A=S*2+150)
400	550	950
450	600	1050
500	650	1150
550	730	1280	500＜Stroke≤600, L=S+180,A=L+S(A=S*2+180)
600	780	1380	500＜Stroke≤600, L=S+180,A=L+S(A=S*2+180)

Linear actuator with POT

S(mm)	Retracted L(mm)	Extended A(mm)	Simulate
50	190	240	30≤Stroke≤400, L=S+140 A=L+S(A=S*2+140)
100	240	340
150	290	440
200	340	540
250	390	640
300	440	740
350	490	840
400	540	940

Hall sensors built-in motor
Code	Signal feedback	Magnetic pole	Resolution （1 pair of pole） Pulse/mm	Resolution （4 pairs of poles） Pulse/mm
A	Hall sensors	1 pair of pole or 4 pairs of poles	13.17 pulse/mm	52.67 pulse/mm
B			10.16 pulse/mm	40.63 pulse/mm
C			7.10 pulse/mm	28.4 pulse/mm
D			3.70 pulse/mm	14.8 pulse/mm
E			4.26 pulse/mm	17.04 pulse/mm
F			2.84 pulse/mm	11.36 pulse/mm
G			1.78 pulse/mm	7.12 pulse/mm
H			1.48 pulse/mm	5.92 pulse/mm
I			1.07 pulse/mm	4.272 pulse/mm
J			0.71 pulse/mm	2.848 pulse/mm

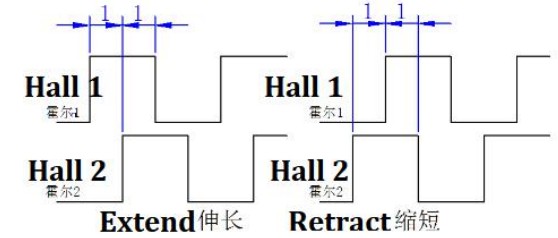

Phase difference
Phase difference 90°

POT information
Resistance	Turn(s)	Tolerance	Remark
10K	10	±5%	Actual resistance value may vary within the 0-10KΩ range based on stroke length
POT (10KΩ)
Code	Initial resistance	10KΩ POT Max. stroke	Remark
A、 B、 C、 D、 G	0.2-0.4KΩ	180mm/540mm	/
E、 I	0.2-0.4KΩ	300mm/600mm	/
F、 H、J	0.2-0.4KΩ	540mm/600mm	/

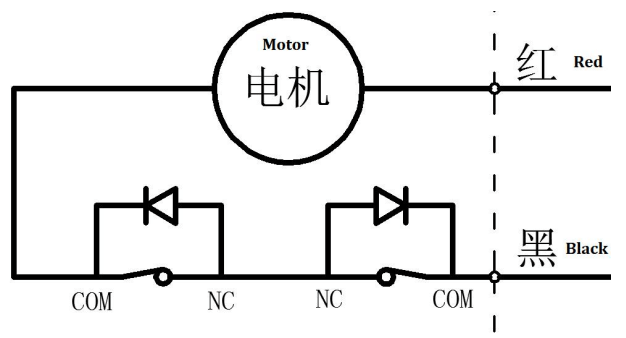

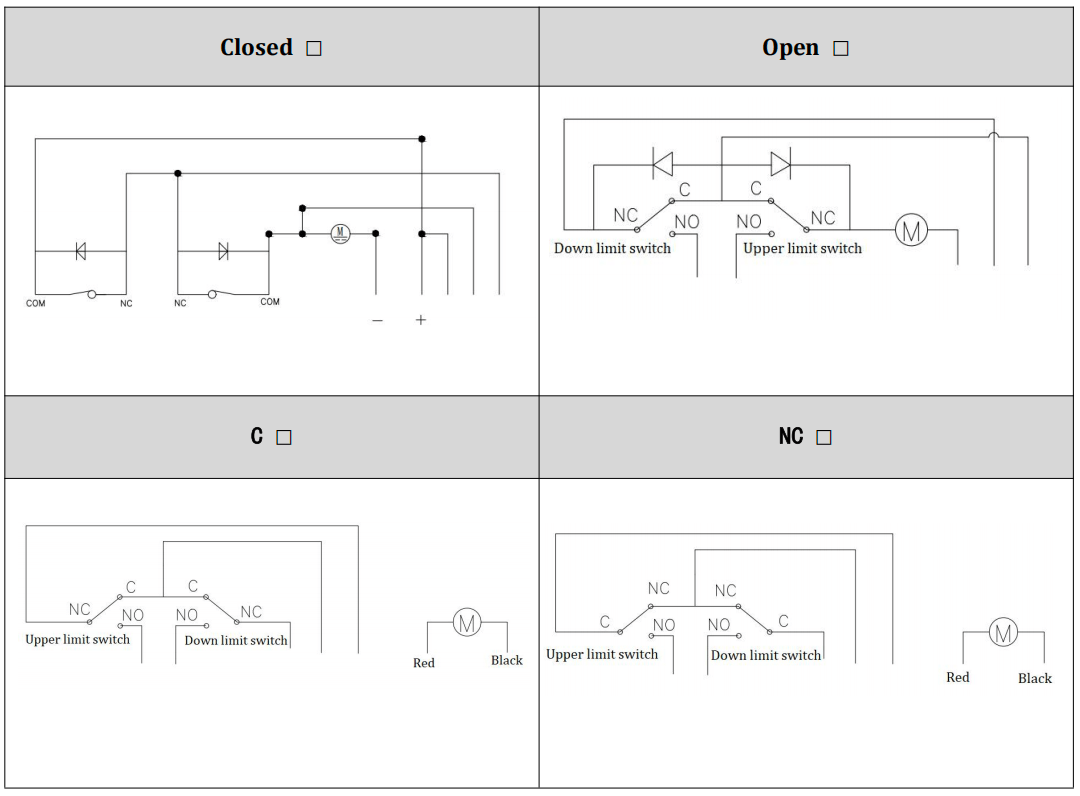

Standard limit switch diagram

Limit switch signal output

Front

Rear

Dustproof and Waterproof
