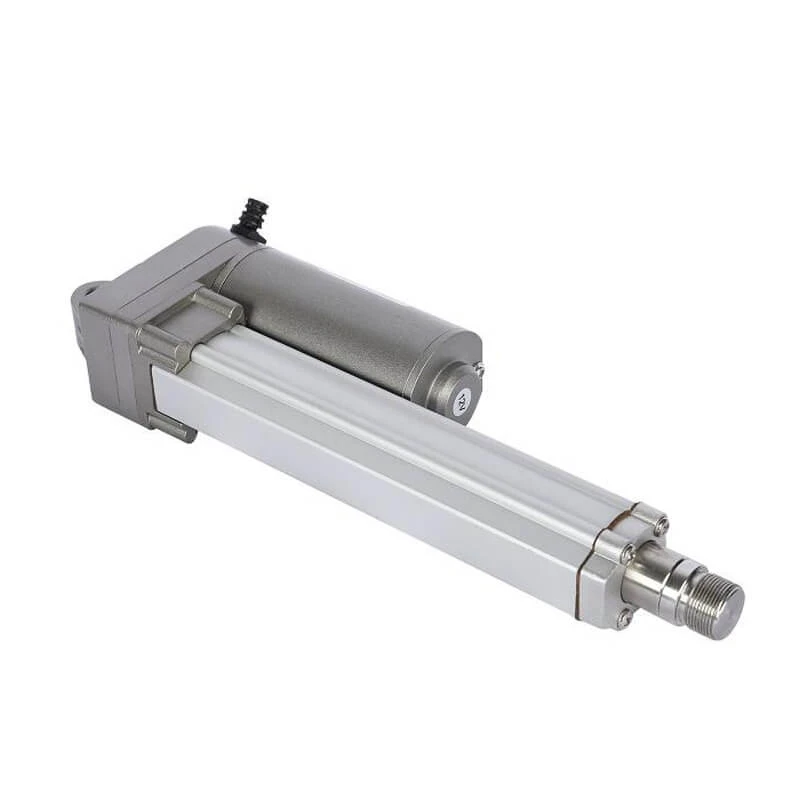

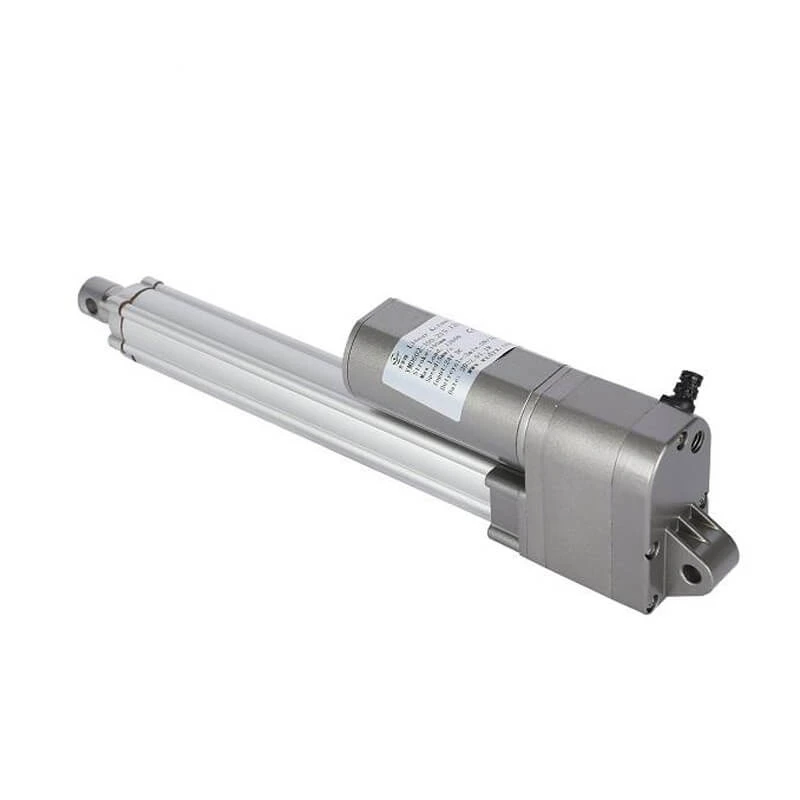

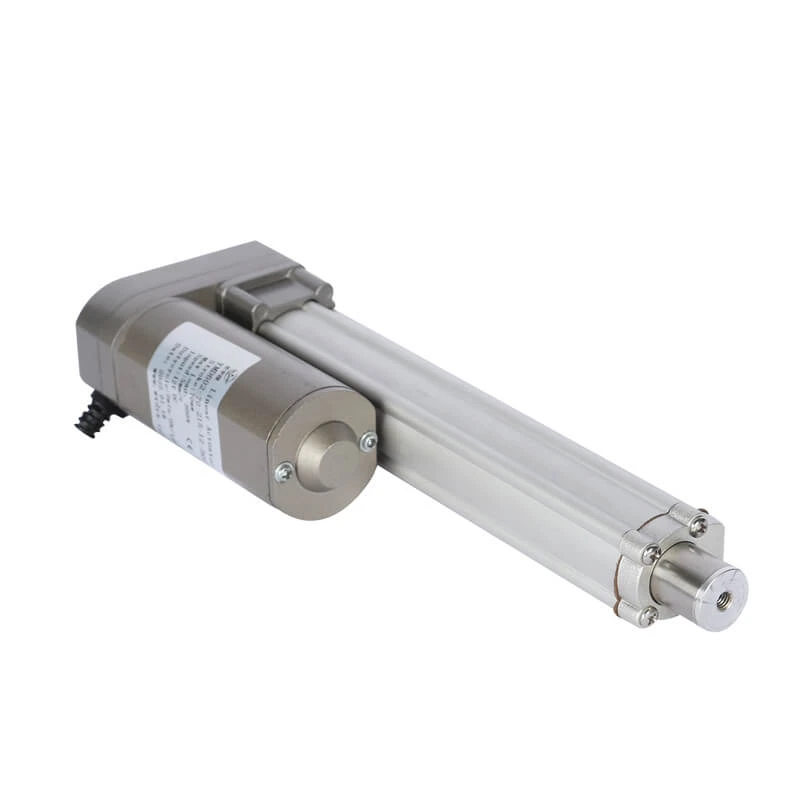

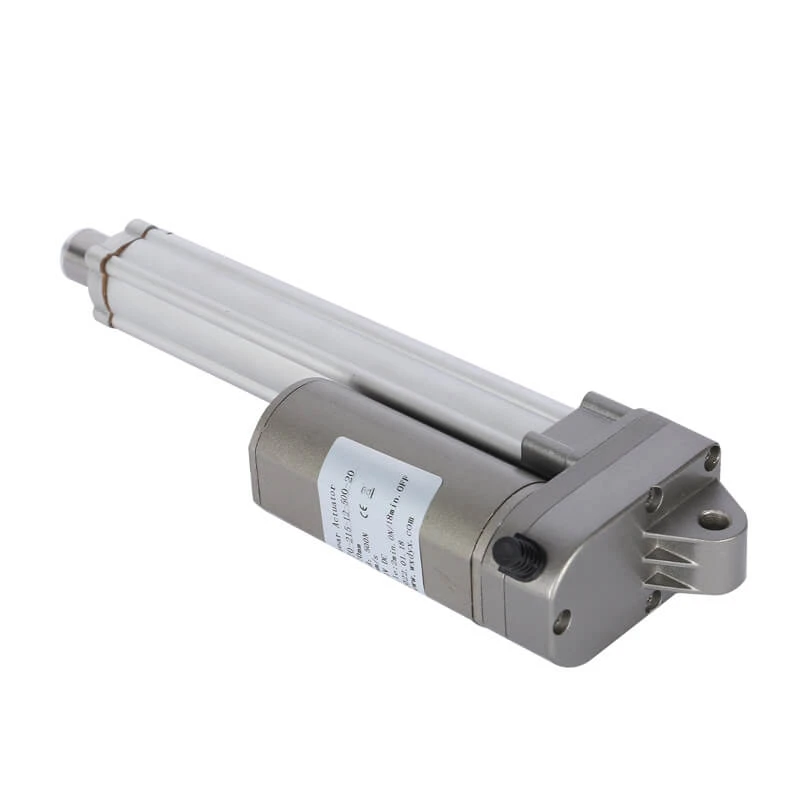

YMD602

Feature

  •  Aluminum alloy housing

  •  SUS304 inner-tube

  •   Compact mechanical system

  •   Protect class IP66

  •   Built-in limit switches

  •   Imported POT/HALL sensors (options)

  •   CE certificated

  •   Widely work in the harsh environment

PDF Download

Contact Us Right Now

Basic Spec.

Housing color

□Silver             □Black                   □Customize colors



Screw type

□T-screw

Control

□control box   □control system + manual

Application

□Industrial

Work

environment

□0~40℃       □-20~65℃         □-40~65℃

Noise level

□≤65dB

Stroke

□50-600mm    □Customize stroke

Load

□≤1200N      □≤2000N           □≤2500N

Duty cycle

□10%            □20%

Motor type

□Brushed DC motor

IP rating

□IP65          □IP66

Signal output

□No               □Switch signal       □Hall sensors        □POT               □Magnetic switch

Input voltage

□12V             □24V               □36V               □48V

Cable length

□1m                 □2m                   □Customize length


Technical Info

CodeGear ratioScrew pitchMax.loadNo-load  （mm/s）Full-load  （mm/s）Test environment (standard temperature)
12V24V36V48V12V24V36V48V
No-load current (A)Full-load current (A)
A1.6673611113200053.51.20.60.40.33.521.51
B1.250694444316006.551.20.60.40.33.521.51
C0.834027778312001071.20.60.40.33.521.51
D0.417361111370018131.20.60.40.33.521.51
E0.834027778560014111.50.80.50.342.51.51
F0.8340277787.545024181.50.80.50.342.51.51
G0.209027778330038301.20.70.40.33.521.51
H0.4173611117.525045351.50.80.50.342.51.51
I0.209027778520055451.50.80.50.342.51.51
J0.2090277787.510080601.50.80.50.342.51.51

Mounting length

Dimension

S: Stroke, the travel length of actuator

L: Length, the fully retracted length of actuator from front hole centre to rear hole centre

Linear actuator without POT

S(mm)Retracted  L(mm)Extended  A(mm)Simulate
5015820830≤Stroke≤300,L=S+108，A=L+S(A=S*2+108)
150258408
200308508
250358608
300408708
350500850300＜Stroke≤500,  L=S+150,A=L+S(A=S*2+150)
400550950
4506001050
5006501150
5507301280500＜Stroke≤600,  L=S+180,A=L+S(A=S*2+180)
6007801380


Linear actuator with POT

S(mm)

Retracted  L(mm)

Extended  A(mm)

Simulate

50

190

240

30≤Stroke≤400,

L=S+140

A=L+S(A=S*2+140)

100

240

340

150

290

440

200

340

540

250

390

640

300

440

740

350

490

840

400

540

940


Hall Sensor Signal


Hall sensors built-in motor


Code


Signal feedback


Magnetic pole

Resolution

（1 pair of pole）

Pulse/mm

Resolution

（4 pairs of poles）

Pulse/mm

A

Hall sensors

1 pair of pole or

4 pairs of poles

13.17 pulse/mm

52.67 pulse/mm

B

10.16 pulse/mm

40.63 pulse/mm

C

7.10 pulse/mm

28.4 pulse/mm

D

3.70 pulse/mm

14.8 pulse/mm

E

4.26 pulse/mm

17.04 pulse/mm

F

2.84 pulse/mm

11.36 pulse/mm

G

1.78 pulse/mm

7.12 pulse/mm

H

1.48 pulse/mm

5.92 pulse/mm

I

1.07 pulse/mm

4.272 pulse/mm

J

0.71 pulse/mm

2.848 pulse/mm


Phase difference

Phase difference 90°



POT


POT information

Resistance

Turn(s)

Tolerance

Remark

10K

10

±5%

Actual resistance value may vary within the 0-10KΩ range based on stroke length

POT (10KΩ)

Code

Initial resistance

10KΩ POT Max. stroke

Remark

A、 B、 C、 D、 G

0.2-0.4KΩ

180mm/540mm

/

E、 I

0.2-0.4KΩ

300mm/600mm

/

F、 H、J

0.2-0.4KΩ

540mm/600mm

/

Signal Output

Standard limit switch diagram

Limit switch signal output

Attachment Options

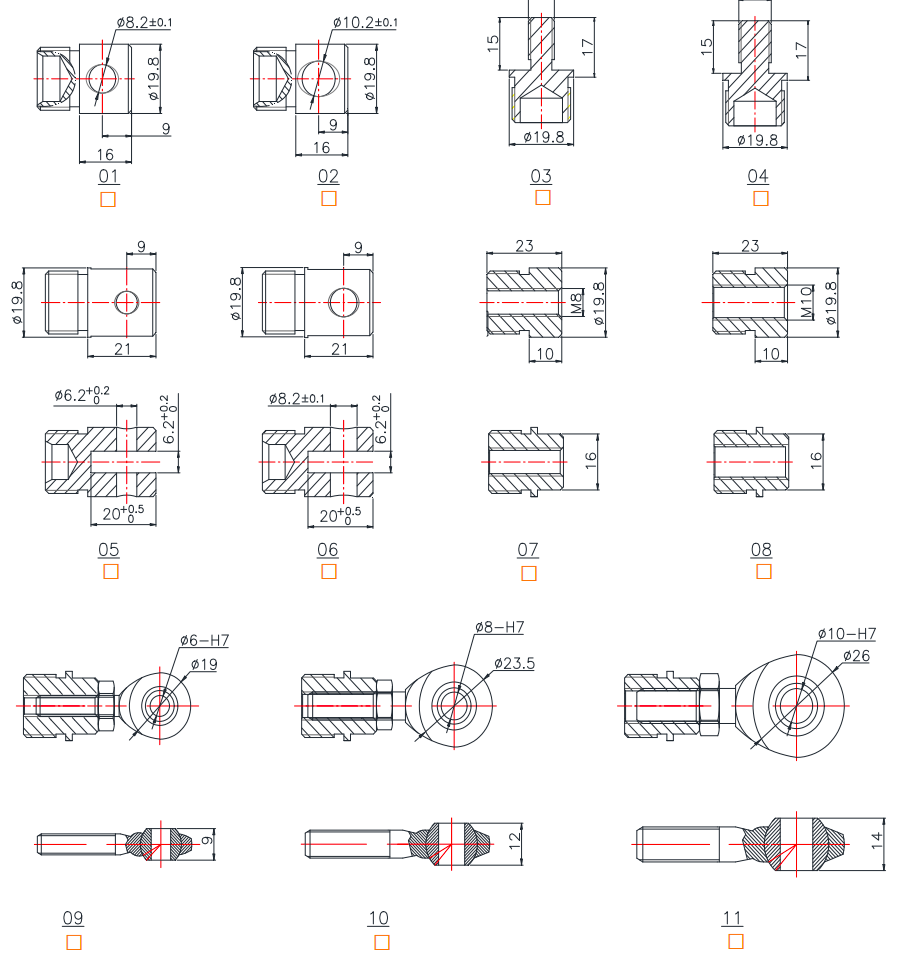

Front

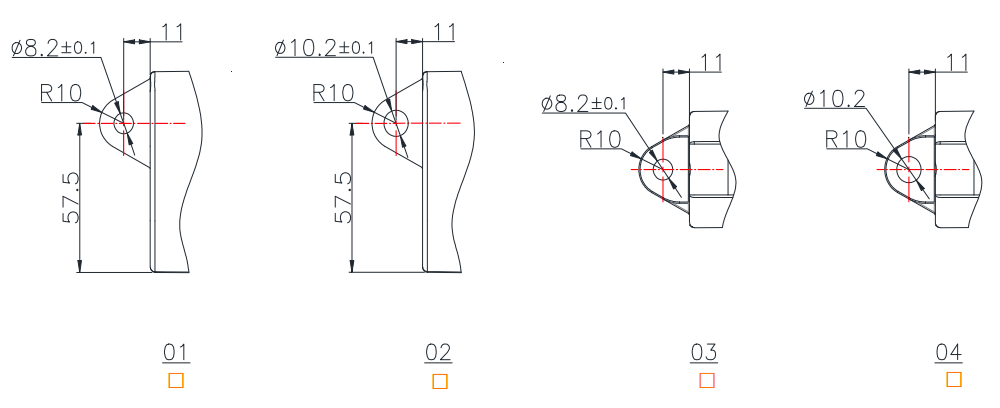

Rear
